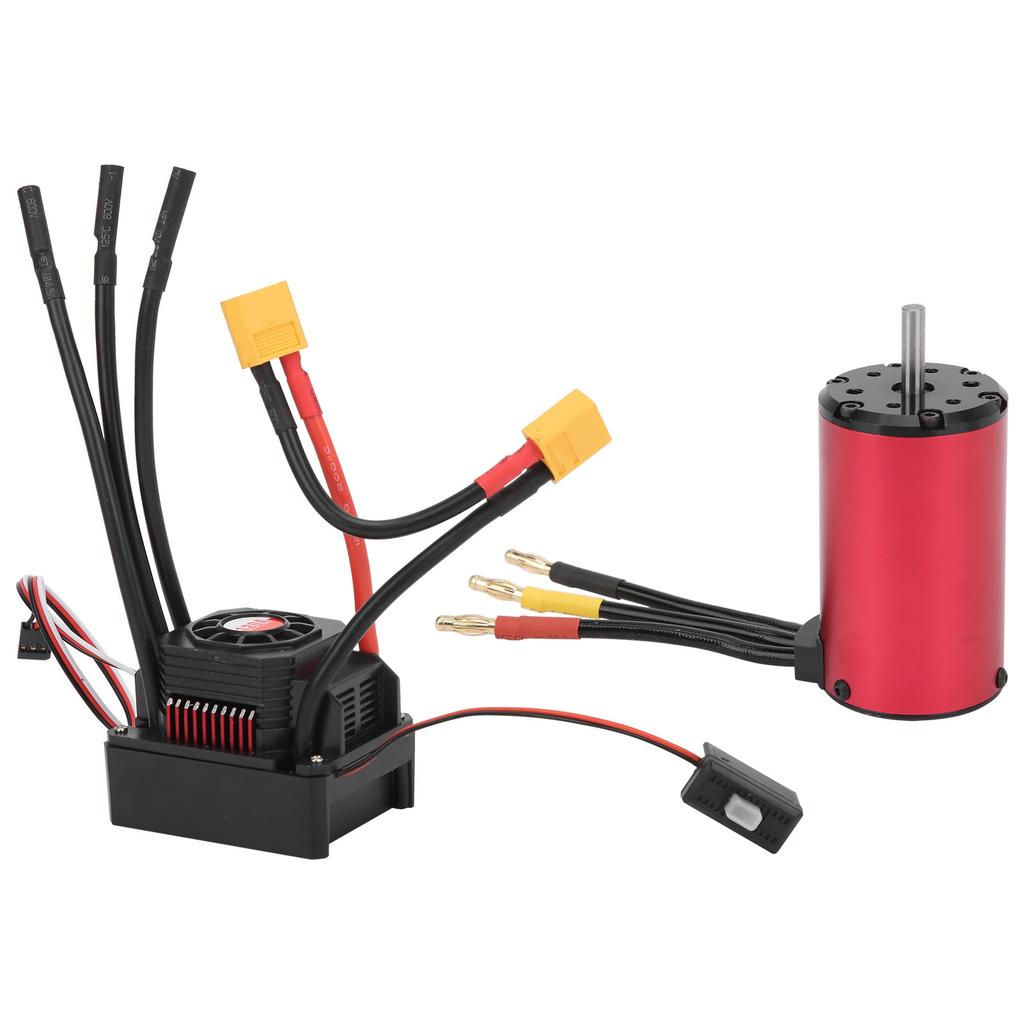

SURPASSHOBBY 4068 RC Brushless Motor 2050KV+120A Waterproof ESC XT60 Connector for 18 RC Car

Feature: 1. It adopts 4?level 12?slot high?torque motor design, which can realize maximum power conversion. CNC machined steel billet, 6061?T6 aluminum heat sink, secondary oxidation treatment, high?end and fine appearance. Suitable for 18 brushless RC cars. 2. High?speed ABEC5 ultra?durable sealed bearings, low friction, low noise, high accuracy, and long?lasting use. 4.0mm gold?plated connector, 5.0mm output shaft. 3. High balance explosion?proof rotor, high smoothness, high speed, dynamic balance control within 10mg, it can be disassembled and replaced later. Ultra?thin silicon steel sheet, excellent performance, high magnetic permeability, high silicon content, good insulation and heat resistance. 4. It adopts M3+M4 screws, a variety of installation styles for you. Powerful current resistance, excellent heat dissipation, easy to program and compatible with pocket programming cards. 5. The motor adopts precise waterproof design, maximum power conversion, high?purity copper coil, maximum efficiency, temperature resistance 180?200 celsius . Multiple protection functions, battery low?voltage cut?off protection, overheating signal loss protection, motor stall protection. Specification: Item Type: RC Brushless Motor Material: Plastic+Metal+Electronic Component Color: Red and BlackBrand: SUPERAR HOBBY 4068 Motor: KV (rpmvolt): 2050kv Wattage: 2200 Maximum Speed: 50000 Maximum Ampere: 105A Number Of Rotor Poles: 4 Diameter: Approximately. 40mm1.6in Length: Approx. 68mm2.7in Shank Diameter: Approx. 5.0mm0.2in Shaft Length: Approx. 18mm0.7in Connector: Approx. 4.0mm0.16in 120A ESC: Continuous Current: 120A Maximum Current: 600A Motor Type: Sensorless and brushless motor For 4S Lipo or 12 batteries NIMH 1. For Highway: 40xx or smaller motors with KV <3000 2. For RC OffRoadTruck : Motor with a size of 40xx or smaller when KV <2500 For 6S Lipo or 18 battery NIMH 1. For Highway: 40xx or smaller motors with KV <2500 2. For RC OffroadTruck : 40xx or smaller motor with KV <2000 Resistance: 0.00035ohm Battery: 36 cells Lipo 918 cells NIMH Bec Output: 6.1V3A (switch mode) Product Size: Approx. 60x45x45mm2.4x1.8x1.8in Application: Suitable for 18 RC cars. How to Use: 1. Connect the BEC cable to the receiver. 2. Use ESC to connect the motor cable. 3. Turn on the transmitter. 4. Connect the battery pack to the ESC, and then turn on the ESC. 5. After the connection between the motor and the battery is completed, the motor emits a "beep beepbeep beep beep". 6. When the throttle stick is in the neutral position, the electric motor will beep again 7. ESC is feasible. Troubleshooting: 1. If the motor fails to work and no sound is emitted after poweron, please check the connection between the battery pack and the motor. 5. If the RC car suddenly stops under working conditions, please check the connection of the motor and roadblocks. 6. If the RC car is driving in the opposite direction (transmitter can be used), please swap the two wires between the ESC and the motor.. Package List: 1 x RC Brushless Motor1 x 120A Waterproof ESC2 x Instructions Note: 1. Due to manual measurement, please allow an error of 1?3mm. Thank you!2. The monitor calibration is inconsistent, and the color of the item shown in the photo may be slightly different from the actual object. Please refer to the actual one.3. Before using this ESC in water, please remove the cooling fan; clean and dry it immediately after use to prevent the connector from rusting.It adopts 4?level 12?slot high?torque motor design, which can realize maximum power conversion. CNC machined steel billet, 6061?T6 aluminum heat sink, secondary oxidation treatment, high?end and fine appearance. Suitable for 18 brushless RC cars. High?speed ABEC5 ultra?durable sealed bearings, low friction, low noise, high accuracy, and long?lasting use. 4.0mm gold?plated connector, 5.0mm output shaft. High balance explosion?proof rotor, high smoothness, high speed, dynamic balance control within 10mg, it can be disassembled and replaced later. Ultra?thin silicon steel sheet, excellent performance, high magnetic permeability, high silicon content, good It adopts M3+M4 screws, a variety of installation styles for you. Powerful current resistance, excellent heat dissipation, easy to program and compatible with pocket programming cards. The motor adopts precise waterproof design, maximum power conversion, high?purity copper coil, maximum efficiency, temperature resistance 180?200 celsius . Multiple protection functions, battery low?voltage cut?off protection, overheating signal loss protection,
