RK6006/RK6006-BT CNC Direct Current Regulated Converter 60V 6A USB Communication Bench Voltage Stabilizer for Voltage Regulation
Features:
1.Compact Design: Unlike bulkier 60V 6A power supplies, this DC DC step-down module converter boasts a significantly smaller footprint, delivering the same output range in a more compact form to maximize your workspace.
2.Triple Protection: Your devices and loads are safeguarded with built-in overvoltage, overcurrent, and overtemperature protections, this CNC direct current regulated converter ensuring your projects run smoothly without the risk of damage.
3.Software Integration: Elevate your control precision using our PC software, this regulated power supply buck converter designed to adjust settings and monitor data effortlessly for a seamless power management experience.

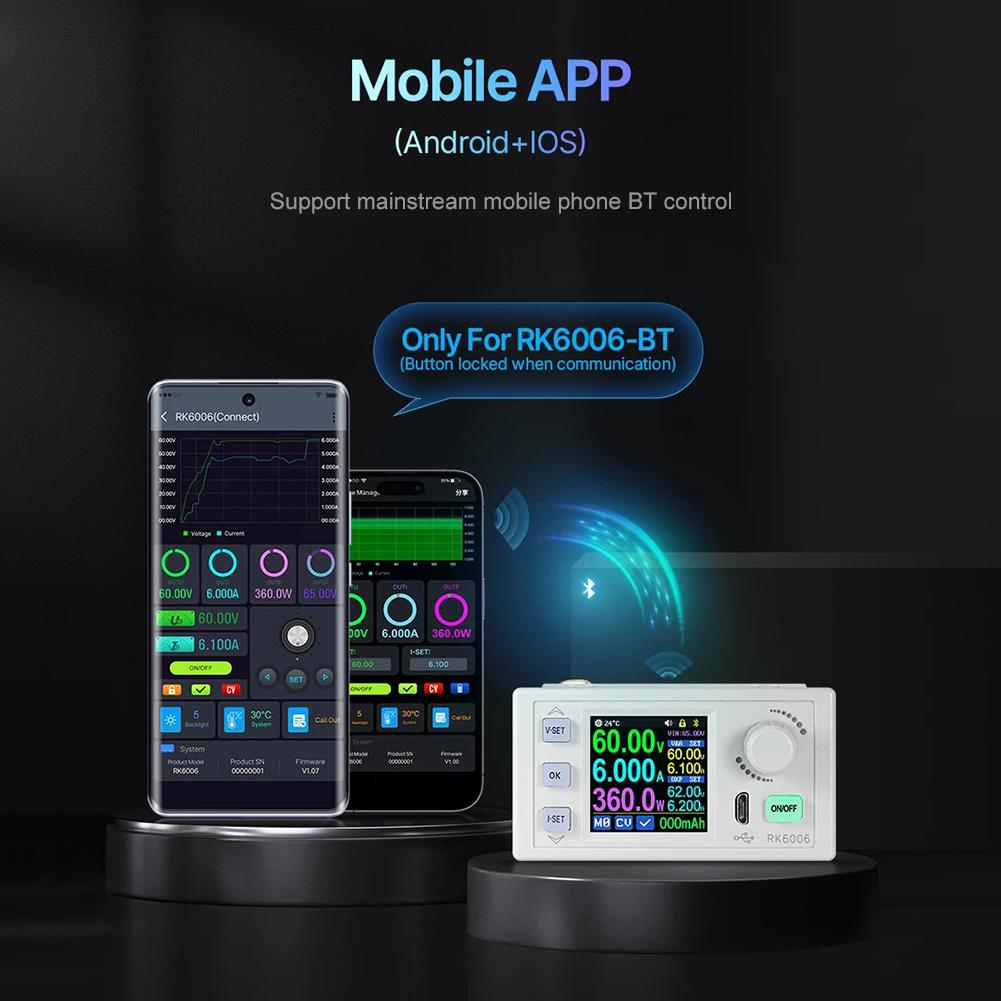

4.App Connectivity: With the option to order a Bluetooth-Compatible version, gain the flexibility to connect, control, and monitor your power supply of this USB communication bench voltage stabilizer via our compatible with Raden Technology app for smart, on-the-go adjustments.

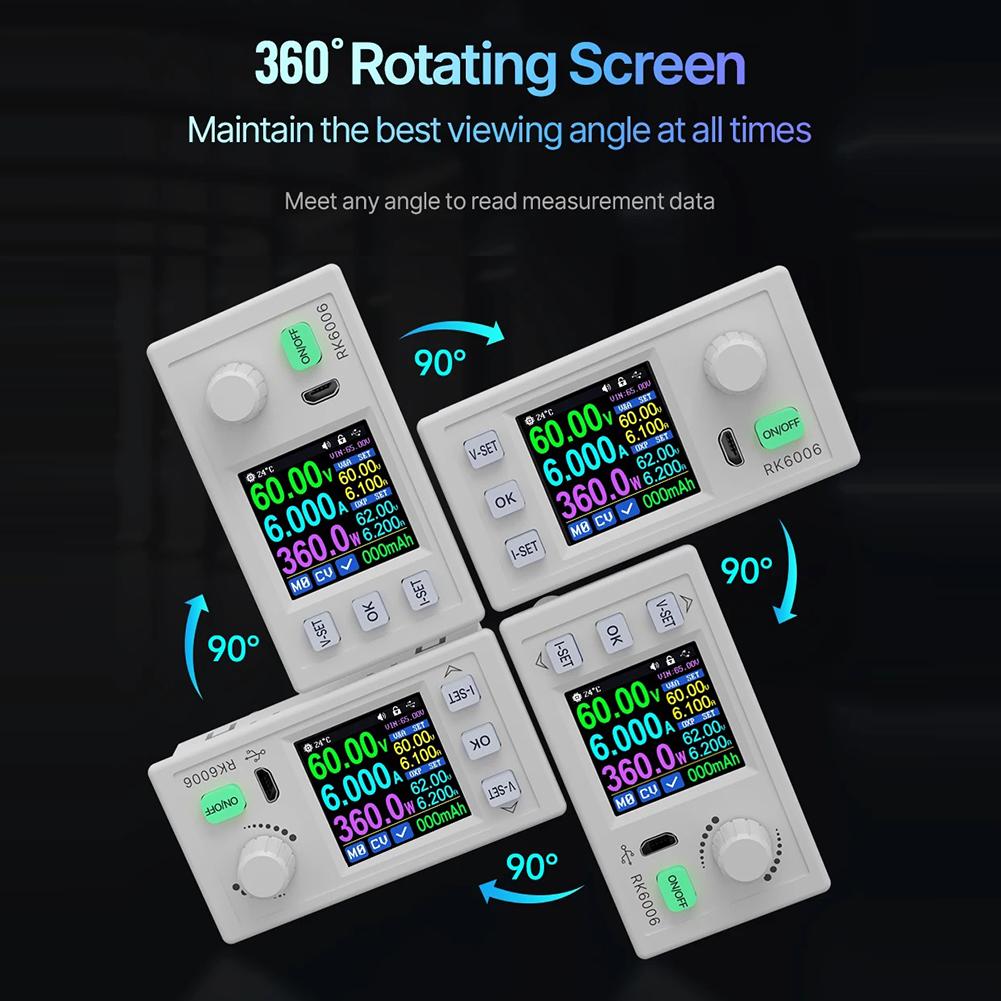

5.Custom Displays: This voltage power supply stabilized buck converter personalize your power supply interface by customizing voltage, current, and power readouts with your preferred colors, enhancing usability and visibility according to your taste.
Specification:
Origin: Mainland China
Model: RK6006/RK6006-BT
Input voltage range: 12-68.00V
Output voltage range: 0-60.00V
Output current range: 0-6.000A
Output power range: 0-360W
Input voltage measurement resolution: 0.01V
Output voltage setting measurement resolution: 0.01V
Output current setting measurement resolution: 0.001A
Input voltage measurement accuracy: ±(1%+5 digits)
Setting and measuring output voltage accuracy: ±(0.3%+3 digits)
Output current setting and measurement accuracy: ±(0.5%+5 digits)
Output ripple typical value: 100mV VPP
Working temperature range: -10℃~40℃
External sensor temperature detection range: -10℃~100℃/0°~200°F
External sensor temperature detection accuracy: ±3℃/±6℉
Constant voltage mode response time: 2ms (0.1A-5A load)
Constant voltage mode load regulation: ±(0.1%+2 digits)
Constant current mode load regulation: ±(0.1%+3 digits)
Capacity measurement range: 0-9999.99Ah
Electricity measurement range: 0-9999.99Wh
Capacity and energy statistical error: ±2%
Buck working mode: (input voltage/1.1)-1
Over-temperature protection: system temperature >90℃
Screen brightness setting: 0-5 (6 levels in total)
Screen: 1.54-inch 240*240 color high-definition display
Cooling fan starting conditions: output current >5A or system temperature >65℃
Cooling fan shutdown conditions: output current <4.9A and system temperature <60℃
Weight (including packaging): about 0.15kg
Support USB communication: Yes
Support Bluetooth-Compatible communication: only supported by RK6006-BT
Product size: 79.00x55.00x43.00mm/3.11x2.17x1.69inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
