Feature:
1. The waterproof 45A brushless ESC is made of the high?quality components to ensure efficient operation.
2. With enhanced low pressure protection, overheating protection and throttle signal loss protection.
3. 6061 T6 billet aluminum heat sink processed by CNC can effectively ensure the efficient operation and cooling of the motor.
4. High?purity copper windings maximize efficiency and accurate design can achieve maximum energy coverage.
5. 4?pole 12?slot high?torque motor is designed with light weight, portable and easy to use.
6. Universal installation, suitable for multiple installation systems with M3 screws for all 110 RC brushless cars.
Specification:

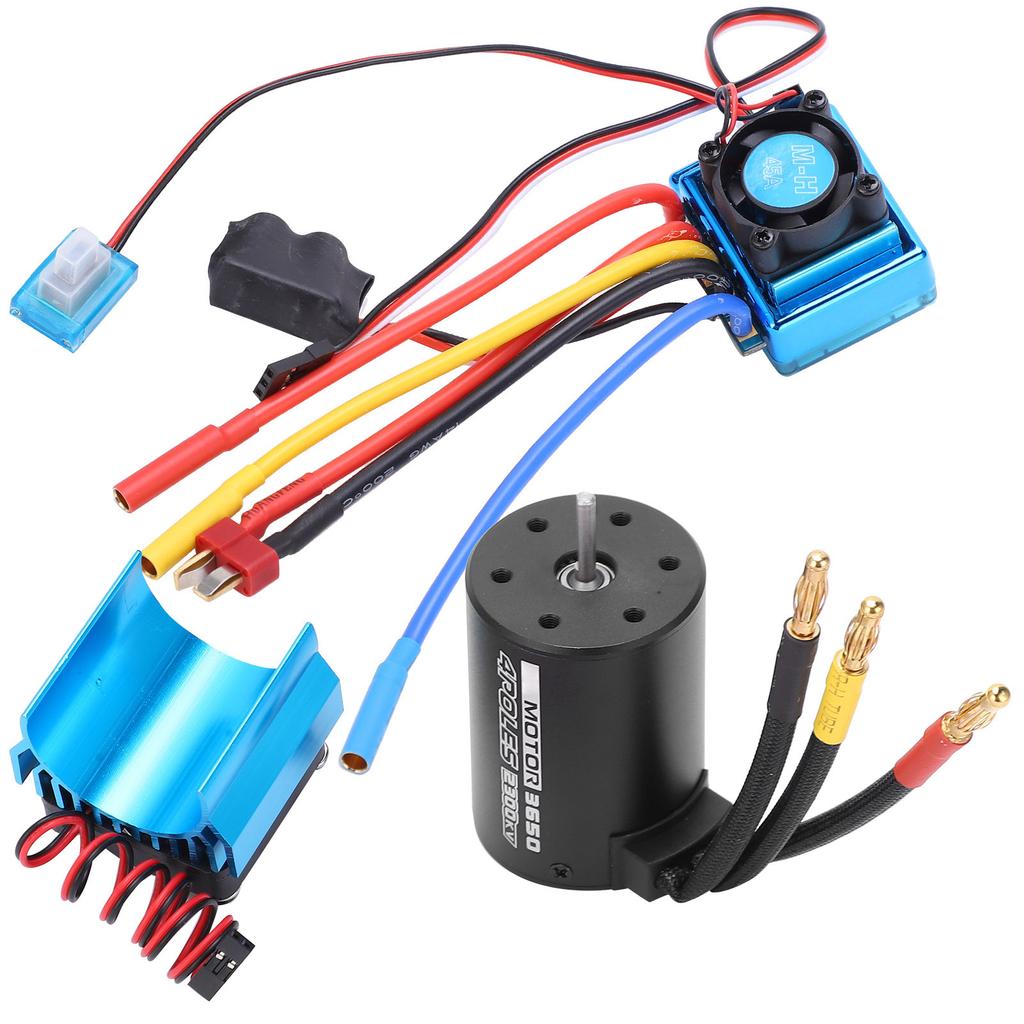

Item Type: 3650 2300KV Brushless Motor + 45A ESC + Heat Sink Combo
Material: Aluminum Alloy + Copper + Plastic
Product Color: As Pictures Shown
Product Weight: Approx. 310g 10.9oz
Compatible: Fit for 110 RC Car
Motor Parameters:
Wattage: 900W
Maximum Voltage: <22V
Maximum Amperage: 41A
KV Value (RPMvolt): 2300KV
Maximum Speed: 50000
Diameter: Approx. 36mm 1.4in
Length: Approx. 50mm 2.0in
Shaft Length: Approx. 15mm 0.6in
Shaft Diameter: Approx. 3.175mm 0.1in
Plug Type: 4mm Golden Banana Plug
ESC Parameters:
Continuous Current: 45A
Burst Current: 180A
Product Applicable Battery: 23S Lithium Battery 49s Nickelhydrogen Nickelcadmium Battery (not included)
BEC Output: 5.8V 3A
Power Plug: T Plug Male.
Package List:
1 x Motor 1 x ESC1 x Motor Radiator
1 x Manual
Note:
1. Avoid working temperature exceeding 65 degrees C (150 degrees F).2. Do not touch the motor after use, because the motor may overheat.3. Allow the motor to cool completely between two uses.4. Make sure to use the correct size motor mounting screws.5. Do not over tighten the motor mounting screws.The waterproof 45A brushless ESC is made of the high?quality components to ensure efficient operation.
With enhanced low pressure protection, overheating protection and throttle signal loss protection.
6061 T6 billet aluminum heat sink processed by CNC can effectively ensure the efficient operation and cooling of the motor.
High?purity copper windings maximize efficiency and accurate design can achieve maximum energy coverage.
4?pole 12?slot high?torque motor is designed with light weight, portable and easy to use.
